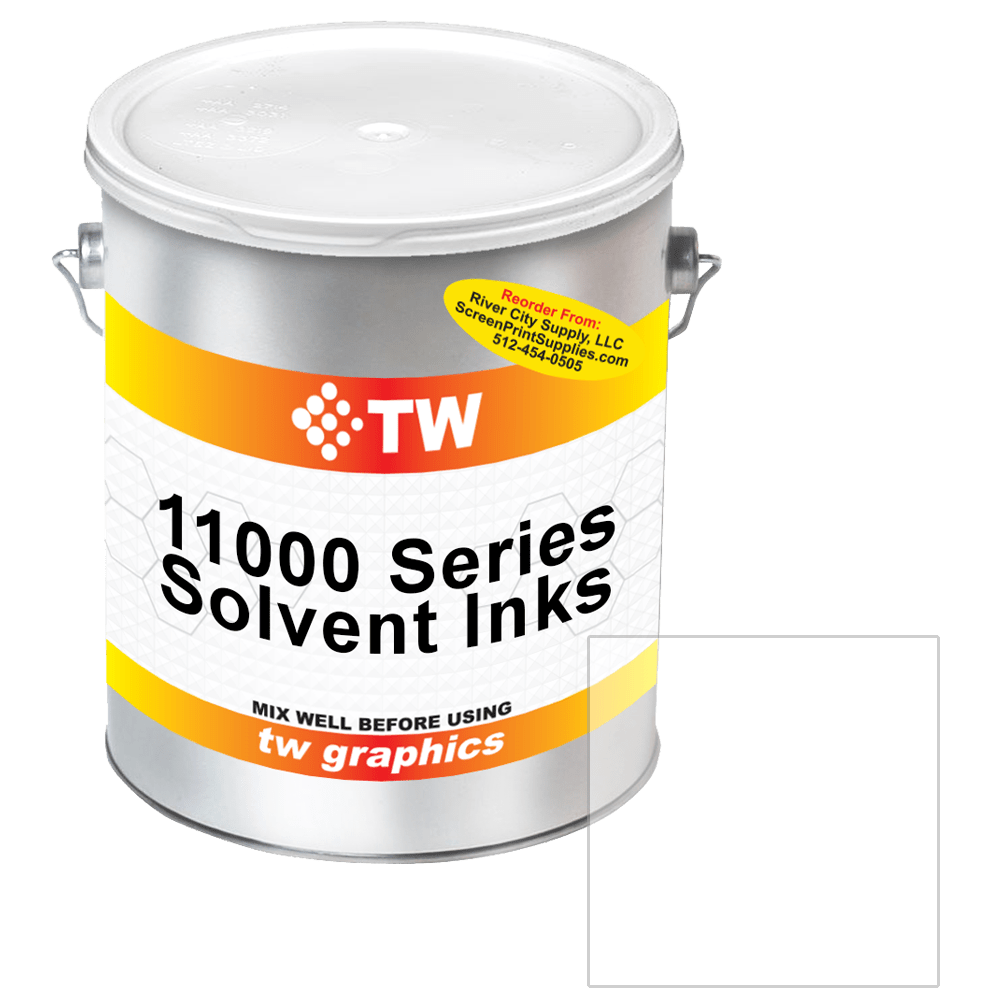

TW 11030 Mix / Overprint Clear Solvent Based Ink
The TW 11000 Ink Series has been specifically formulated to adhere to a wide range of substrates while still offering substrate flexibility and water resistance. End uses include fabric banners, city pole banners, metal signs and point of purchase displays.
Note: This item is not in stock and will drop ship from California, Please allow 2-3 extra days to ship.
TW 11000 Series Features:
- An Extremely Diverse Adhesion Range
- Flat Non-Reflective Gloss Level for Outdoor Applications
- Excellent Durability and Water Resistance
- Up to 2 Year Light-Fastness*
- Plastisizer Migration Resistant
- Automotive Grade Pigments
- Treated Polyethylene
- Treated Polypropylene
- Coated Wood
- Coated Metal
- Nylon Fabric
The 11000 Ink Series is a flexible, one component, no gloss, chemical resistant solvent-based ink system which adheres to a wide variety of substrates. The 11000 Ink Series can be used to print nylon jackets, flags, Tyvek®, plastic sheeting, leather, wood, metals and treated polyethylene and polypropylene plastic containers.
110 to 305 (43 to 120 cm) monofilament polyester is recommended.
Solvent proof or water-soluble emulsion only. Use a water-soluble blockout.
A sharp 65 to 75 single durometer blade.
Ink Additives and Thinning:
Stir the ink well before every use. The 11000 Ink Series is supplied in a press ready condition for most applications and printing equipment, however certain additives may be required for different types of printing applications. Use TW-1073 Thinner or 11017 thinner for normal viscosity adjustments or to improve the inks flow by no more than 5 to 10% by weight. Retard with TW-1091 for fine detail printing, slow print cycles or high temperature conditions by no more than 5 to 10% by weight. For maximum adhesion to synthetic fabrics, inks must be thinned for better surface penetration. An over reduction with retarders and thinners can result in blocking and a significant reduction in drying speed. Never exceed recommended levels of reduction.
Use 2 to 5% of TW-2919 Adhesion Promoter / Catalyst by weight to improve chemical resistance and adhesion. Please note however, that the addition of the W-2919 Adhesion Promoter / Catalyst will result in a reduced pot life of 4 to 6 hours under most conditions. We strongly recommend mixing only enough
ink for a estimated 4 to 6 hour period.
Ink Yield and Coverage:
Colors should achieve a yield of 1,400 to 2,000 square feet per gallon (33 to 47 square meters per liter) depending on fabric selection, squeegee hardness, substrate absorption and press mechanics.
The 11000 Series will air dry in 10 to 20 minutes at normal room temperature. Force drying in seconds at 90° to 150° F (32° to 66° C). To prevent the blocking of material after printing, it is paramount to ensure that the temperature of the drying is not excessive and the air flow surrounding the material is good. Material blocking may occur if sheets are stacked when warm.
It is imperative that all substrates are tested prior to use within production. Even similar materials can vary between different batches, manufacturers or the age and storage time of the particular substrate. Certain types of fabrics may be manufactured with surface treatments which can impair ink adhesion and print performance. The 11000 Series has been specifically formulated to adhere to most polyethylene and poly-propylene substrates with surface tension levels of 38 dyne/cm or higher. Once the ink has been fully dried and allowed to cool down, the adhesion should be tested by: Cross Hatch Test—Using a sharp blade or cross hatch knife, cut through the film of the ink only, then Apply 3M #600 tape firmly on the cut area. Rub the tape down firmly then rip off. Ink should only come off in the straight cut areas.
The 11000 Ink Series includes the Single Pigment Mixing Colors, Standard Colors and the Advanced Color GamutTM four-color process inks.
Single Pigment Mixing Colors Standard Colors:
- 11001 Green Shade Yellow
- 11012 Lemon Yellow
- 11002 Red Shade Yellow
- 11013 Medium Yellow
- 11003 Yellow Shade Red
- 11014 Fire Red*
- 11004 Blue Shade Red
- 11015 Rubine
- 11005 Magenta
- 11016 Warm Red
- 11006 Maroon
- 11017 Emerald Green
- 11007 Violet
- 11018 Process Blue
- 11008 Red Shade Blue
- 11019 Reflex Blue**
- 11009 Green Shade Blue
- 11020 Ultra Blue**
- 11010 Blue Shade Green
- 11021 Opaque White
- 11011 Yellow Shade Green
- 11025 Opaque Black
- 11030 Mixing Clear / Overprint Clear
Additives / Thinners:
- TW-1073 Thinner
- TW-11017 Thinner
- TW-1091 Retarder
- TW-2919 Adhesion Promoter
Advanced Color GamutTM Halftone Colors:
- 11040 Halftone Yellow
- 11041 Halftone Magenta
- 11042 Halftone Cyan
- 11043 Halftone Black
- 11044 Halftone Extender Base
* Fire Red is also a single pigment color.
** 1 year out door light fastness
Ink Wash Up:
Wash up on press with a press wash and reclaim with degradents specifically developed for solvent-based inks. Do not use Mineral Spirits, Lacquer Thinner or other solvents used within other screen printing inks. The 11000 Series unique formula requires additives developed exclusively for this product line.
Store at room temperature, below 100° F (38° C). Always avoid open flames and excessive heat exposure.
Available in quarts, gallons, & five-gallon pails.
Safety and Handling
Refer to the Material Safety Data Sheet for this product prior to use.
Estimated Durability and Light-fastness
Although outdoor durability cannot be specified exactly, accelerated weathering tests indicate that the 11000 Series Ink Line has an exterior life up to two years on most substrates, with exception to Reflex and Ultra Blue. Reflex and Ultra Blue has an exterior life up to one year. Variables within production and the end products use within the field will greatly affect a printed substrates durability. A slight change in color and gloss level should be expected. Some chalking might occur with specific pigments on exterior exposure.
