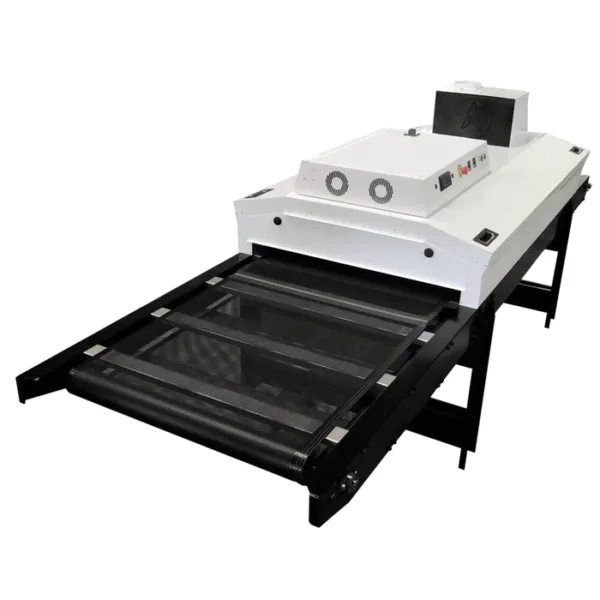

BBC Blackbody Aeolus Forced Air Conveyor Dryer – Elite Performance for Water-Based, Discharge, DTG & Plastisol Inks

BBC Industries, Inc.

Curing water-based and discharge inks requires more than heat—it demands air movement, consistency, and precise temperature control. Enter the BBC Blackbody Aeolus Forced Air Conveyor Dryer: a high-performance dryer designed specifically to cure water-based, discharge, plastisol, and DTG inks efficiently and consistently in one pass.

With over 50 years of heat technology expertise, BBC developed the Aeolus to solve the most common drying challenges faced by modern print shops. From advanced forced air technology to precision-engineered infrared heat and unmatched belt tracking, this dryer is built to perform at the highest level of reliability and consistency.

$18,595.00$23,100.00

SKU: BBC AIR-366C-4-2 Categories: ,

Description

BBC Blackbody Aeolus Forced Air Conveyor Dryer Key Features:

  • Forced Air Technology – Delivers consistent airflow across the entire chamber, rapidly removing moisture and steam for efficient curing of water-based and discharge inks
  • Edge-to-Edge Heating – Angled infrared heating elements span the full length and width of the chamber, ensuring even, complete cures across every print
  • Edgemax™ Technology – Provides consistent edge-to-edge temperature distribution for superior ink curing, even on oversized prints
  • TruTrak™ Belt Tracking System – BBC’s industry-best tracking keeps your belt running true without adjustments—no wandering, no downtime
  • Dual-Zone Heat Control – Two separate heating zones allow quick ramp-up and sustained dwell at curing temps for precision control
  • Precise Temperature Control – Maintains within 5°F accuracy for reliable results across different ink systems
  • Massive Heating Power – 15,915 watts of total heating output, available in 240V / 70A or 208V / 60A configurations
  • Powered Exhaust System – Actively vents steam and fumes, protecting your workspace and promoting faster drying times
  • 36″ Wide Belt – Accommodates large garments, oversized prints, and high-volume runs with ease
  • Cool Exterior Design – Engineered for operator safety, with a cool-touch outer surface for peace of mind
  • Customizable Conveyor Lengths – Adapt the system to your current or future shop layout
  • Three-Year Heater Warranty – Backed by BBC’s commitment to quality and durability

Why Choose the Aeolus?

  • ✅ Cures water-based and discharge inks in one pass
  • ✅ Designed for medium to large shops with high output needs
  • ✅ Built-in power, precision, and expandability
  • ✅ Eliminates the need to slow down your belt or double-cure garments
  • ✅ Handles DTG digital white, DTF adhesives, and plastisol with precision

The BBC Aeolus Forced Air Conveyor Dryer is your solution to fast, even, and professional-grade curing for today’s complex print jobs. Designed with your production in mind, it ensures consistent results without bottlenecks—keeping your workflow moving and your prints looking flawless.

Ships directly from BBC in Missouri. For build times or assistance configuring your setup, contact River City Supply—we’re here to help!

Technical Specifications

BBC Blackbody Aeolus Forced Air Conveyor Dryer – Technical Specifications

Feature Specification
Model BBC Aeolus
Belt Width 36 inches (91.4 cm)
Heater Configuration Dual-zone angled infrared heaters with forced air
Total Heating Power 15,915 watts
Voltage Options 240V, 70A or 208V, 60A
Temperature Accuracy Within ±5°F
Control System Digital heat control with dual zones
Belt Tracking TruTrak™ automatic belt tracking system
Belt Type Teflon-coated fiberglass conveyor belt
Adjustable Conveyor Speed Yes (1–20 FPM typical range)
Exhaust System Powered exhaust for efficient steam and fume removal
Cooling System Cool-touch exterior cabinet surface
Compatible Ink Types Water-based, discharge, DTG digital white, plastisol, and DTF adhesives
Heater Warranty 3 years
Footprint Varies based on conveyor length; customizable
Shipping Drop ships from BBC (Missouri) – some assembly required
