Vastex EconoRed II Conveyor Dryer
Introducing the Vastex EconoRed II, the ultimate solution for high-speed curing of garments screen-printed with plastisol, water-based inks, discharge, and DTF adhesives. Available in two belt widths – 30 inches (76 cm) and 54 inches (137 cm), these dryers are designed to handle the demands of mid to large-sized shops, providing efficient curing at impressive rates. The modular design offers flexibility, enabling easy expansion with additional chambers and conveyor length to meet your growing production needs.

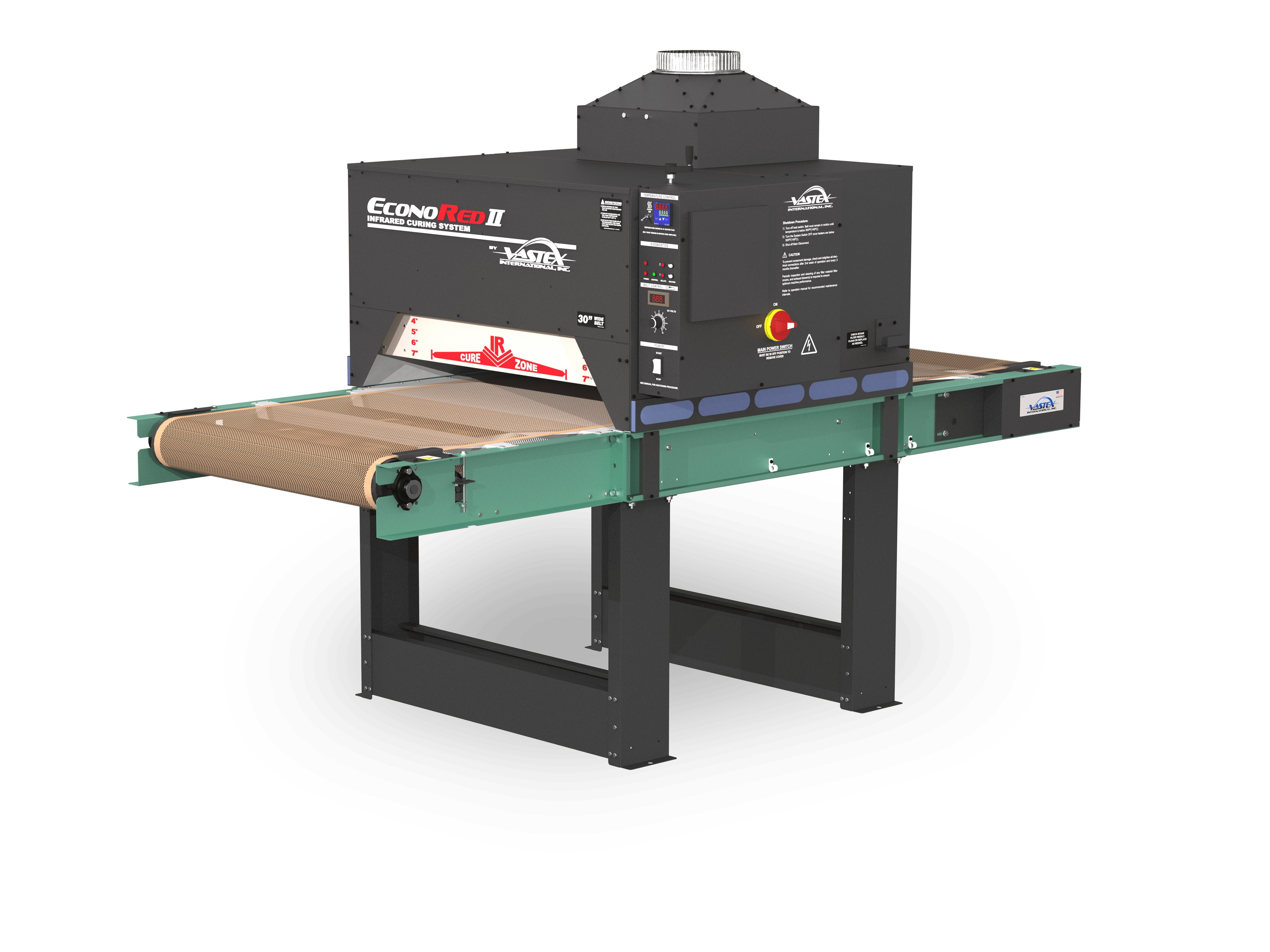

Model ER-II-30 features a 30-inch (76 cm) wide belt equipped with two 24-inch (61 cm) wide heaters, delivering a total of 7,200 watts. With this configuration, you can achieve up to 300 plastisol-printed garments per hour or 100 garments per hour when screen-printed with water-based ink or discharge.*
For even higher production capabilities, Model ER-II-54 boasts a 54-inch (137 cm) wide belt complemented by two 48-inch (122 cm) heaters, offering a remarkable 14,400 watts of curing power. This configuration allows you to cure up to 600 plastisol-printed garments per hour or 200 garments per hour when screen-printed with water-based ink or discharge.*
The EconoRed II dryers are engineered with an advanced top-mounted ventilation system that efficiently filters exhaust air, cools the enclosure’s outer skin, and removes moisture and fumes from the heating chamber. As a result, these dryers operate over 20% quieter and are 5 inches (13 cm) narrower than earlier models. Moreover, the control box can be positioned on either the right or left side of the enclosure, providing versatility to suit your shop layout.
All heating elements are equipped with closely spaced coils, delivering high-density, medium-wavelength infrared heat for rapid and thorough curing without cold spots or under-curing. Vastex’s unwavering confidence in their heaters is reflected in the included 15-year warranty.
Experience precise control with the Vastex Infrared Focusing System, allowing you to adjust heater height from 2 to 7 inches (5.1 to 17.8 cm) above the belt. This feature accommodates bulky garments or hats and can be customized to provide additional heater clearance for ultimate convenience.
Furthermore, the EconoRed II models include a digital belt speed display and a belt tracking system, ensuring prolonged belt life and consistent operation. The digital PID temperature controller offers unparalleled accuracy, with fine-tuning capabilities to achieve precise drying results every time.
$7,500.00 – $10,000.00
-
Description
Vastex EconoRed II Conveyor Dryer Key Features:
- Advanced top-mounted, focused exhaust air system for rapid fume and moisture evacuation
- 20% quieter than previous models, ensuring a peaceful work environment
- Heavy-duty “X-Series” conveyor belt tracking system for reliable operation
- Precise infrared focusing system allowing 2 – 7 inches (5 – 17.7 cm) belt-to-heater height adjustment
- Versatile customization for additional heater clearance to cater to various printing needs
- Available in two belt widths – 30 inches (76 cm) or 54 inches (137 cm)
- Two heater width options – 24 inches (61 cm) or 48 inches (122 cm)
- Maximum image width of 18 inches (46 cm) or 42 inches (107 cm)
- Temperature controller accurate to +/-1°F (+/-0.5°C) with digital PID and fuzzy logic
- Heavy-duty DC belt speed motor with digital voltage display for consistent performance
- Innovative design with a shorter, slimmer, and quieter profile, without compromising heat and production
- Expandable capabilities with options for additional heating chambers and belt extensions at the front or rear for increased versatility.
Experience the epitome of efficiency and productivity with the Vastex EconoRed II, a reliable and advanced solution designed to meet the demands of modern screen printing operations.
Enhance the functionality and customization of your Vastex EconoRed II Conveyor Dryer with a range of optional features and accessories designed to meet your specific needs. Choose from the following options to optimize your drying process and ensure seamless operation:
- Heating Chambers @ 36 in. (91 cm) Long: Expand your EconoRed II dryer’s capacity by adding one or more modular heating chambers. These additional chambers allow you to increase production and handle larger print runs effortlessly.
- Belt Extensions, Front or Rear @ 18 in. (46 cm) Long: Tailor the size of your conveyor belt to accommodate larger garments or bulkier items. Belt extensions offer the flexibility to adapt the drying process to different types of substrates and production requirements.
- Control Box on Left Side (Right Side Standard): Customize the position of the control box to match your shop’s layout and workflow. With the option to place it on the left side, you can optimize the dryer’s accessibility and convenience.
- 3 Phase and 208, 380, 480 Voltages: Ensure compatibility with your shop’s power supply by selecting the appropriate voltage option. The EconoRed II dryer offers versatile voltage choices to suit different electrical configurations.
- Exhaust Hood for Extra Fume Extraction: Improve the air quality in your workspace and maintain a clean working environment with the addition of an exhaust hood. This option efficiently evacuates fumes and moisture from the drying process.
- Hat Support Rail: Expand your drying capabilities to include hats and other headwear items by adding a hat support rail. This feature ensures proper positioning and support for accurate and effective curing.
- Locking Casters for Mobility: Enhance the mobility of your EconoRed II dryer with locking casters. Easily move the dryer to different locations within your shop or lock it in place for stability during operation.
- Reversing Belt/HD Drive: Opt for the reversing belt and heavy-duty drive option to simplify maintenance tasks and prolong the life of the conveyor belt. The reversing feature prevents uneven wear and tear on the belt, contributing to its longevity.
- Additional Heater Clearance: Customize the dryer to provide extra clearance between the heating elements and the belt. This option is particularly useful when working with bulky garments or specialized substrates.
Select the options that best suit your specific requirements and workflow, and take advantage of the versatility and adaptability offered by the Vastex EconoRed II Conveyor Dryer. Elevate your production capabilities and achieve exceptional curing results with this exceptional screen printing dryer and its array of customizable features.
Technical Specifications
EconoRed II 30″ Wide:
- Power: 7,200 watts
- Belt Size: 30” x 7¼’ (76.2 x 220 cm)
- Belt Width: 24” (61 cm)
- Heater Rows: 3’ (91.4 cm)
EconoRed II 54″ Wide:
- Power: 14,400 watts
- Belt Size: 54” x 7¼’ (137 x 220 cm)
- Belt Width: 48” (122 cm)
- Heater Rows: 3’ (91.4 cm)
Vastex EconoRed II-30:
- Heater Warranty: 15 Years
- Defect Warranty: 3 Years
- Shirts / Hr* (Plastisol @ 25 secs): 300+
- Shirts / Hr* (Waterbased/Discharge @ 70 secs): 100+
- Shirts / Hr* (DTG/digital): N/A
- Time in Tunnel Range (mm:ss): 00:11 – 01:39
- Belt Speed (FPM): 1.8 – 23
- Exhaust (Free Air) (CFM): 380
- Exhaust Stack Diameter (cm): 8” (20.32)
- Overall Length (cm): 87″ (221)
- Overall Width (cm): 45.2″ (114.8)
- Overall Height (cm): 60.9″ (154.7)
- Belt Width (cm): 30″ (76)
- Chamber Length (cm): 36″ (91)
- Chamber Infeed Width (cm): 34.5″ (88)
- Chamber Infeed Height (adjustable) (cm): 2″ – 7″ (5 – 17.7)
- Heat Range (@ Heater) (F°): 0-900 @ 240V
- Heater Size & Standard Wattage: 12″ x 24″ (30 x 61 cm), 2 @ 3,600 = 7,200 Watts @ 240V
- Cost / hour to operate based on 10 cents / kwh: 72 cents @ 240V
- Electrical Specs** (FLA): 240V, 1 Phase: 32A
- Shipping Weight** (lbs/kg): 665 lbs (302 kg)
- Shipping Dimensions** (cm): 61″ x 43″ x 65″ (155 x 110 x 166)
Vastex EconoRed-II-54:
- Heater Warranty: 15 Years
- Defect Warranty: 3 Years
- Shirts / Hr* (Plastisol @ 25 secs) – 2 Rows: 600+
- Shirts / Hr* (Waterbased/Discharge @ 70 secs) – 2 Rows: 200+
- Shirts / Hr* (DTG/digital): N/A
- Time in Tunnel Range (mm:ss): 00:11 – 01:39
- Belt Speed (FPM): 1.8 – 23
- Exhaust (Free Air) (CFM): 380
- Exhaust Stack Diameter (cm): 8” (20.32)
- Overall Length (cm): 87″ (221)
- Overall Width (cm): 69.2″ (175.8)
- Overall Height (cm): 60.9″ (154.7)
- Belt Width (cm): 54″ (137)
- Chamber Length (cm): 36″ (91)
- Chamber Infeed Width (cm): 58.5″ (149)
- Chamber Infeed Height (adjustable) (cm): 2″ – 7″ (5 – 17.7)
- Heat Range (@ Heater) (F°): 0-900 @ 240V
- Heater Size & Standard Wattage: 12″ x 48″ (30 x 122 cm), 2 @ 7,200 = 14,400 Watts @ 240V
- Cost / hour to operate based on 10 cents / kwh: $1.44 @ 240V
- Electrical Specs** (FLA): 240V, 1 Phase: 64A
- Shipping Weight** (lbs/kg): 1,130 lbs (513 kg)
- Shipping Dimensions** (cm): 78″ x 49″ x 65″ (199 x 125 x 166)
